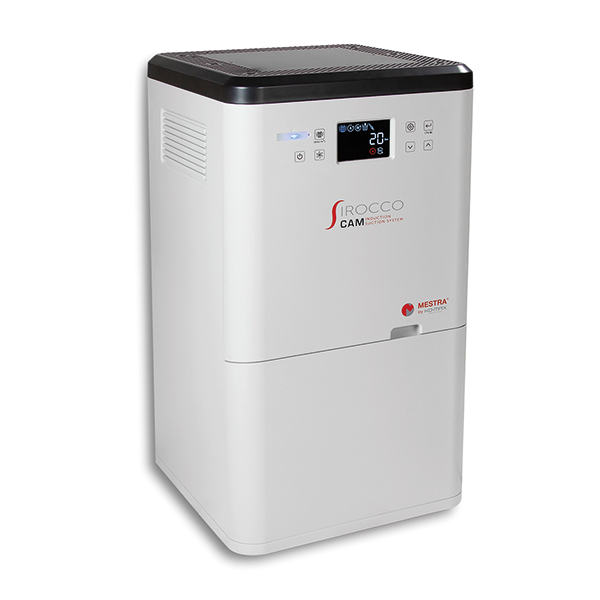

Sirocco CAM bagless suction unit

SKU 080536 Category

Sirocco CAM, suction unit

Description

In modern dental laboratories, where CAD/CAM milling machines operate for long periods, the dust extraction unit becomes a critical component.

The new Sirocco CAM has been designed to meet the three fundamental requirements of these environments with excellence:

  • Silent operation, essential to maintain a comfortable working environment during many hours of continuous use.
  • High-performance filtration, capable of effortlessly handling zirconium oxide, one of the most abrasive materials used in dental milling.
  • High reliability, because the equipment must perform day after day without failures or interruptions. Thanks to its robust design and advanced technology, the Sirocco CAD-CAM offers durable and quiet performance, with a filtering system optimized for the most demanding jobs.

A safe and effective choice for any laboratory seeking quality, durability, and peace of mind.

A POWERFUL AUTOMATIC VIBRATION SYSTEM PERIODICALLY SHAKES AWAY DUST TO MAINTAIN OPTIMAL PERFORMANCE.

  • FILTER SELF-CLEANING
    Vibration option: automatic or manual.
  • COST REDUCTION
    Economical, reducing filter replacement costs.
  • MONITORING SYSTEM
    Intelligent system for real-time monitoring.
  • CUSTOMIZABLE CONFIGURATIONS
    Customizable settings for your environment.
  • INDUCTION MOTOR (brushless)
    Longer lifespan than traditional models.

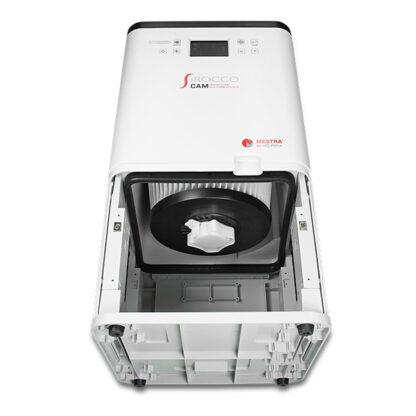

  1. Air intake.
  2. Air passes through the filter.
  3. Clean air is released.

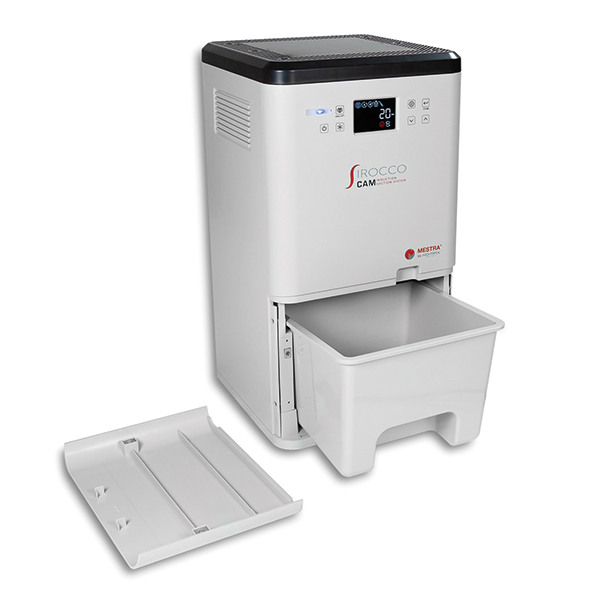

  4. Dust adhering to the filter is dislodged
    by the vibration motor and falls into the removable collection container.

Technical features

  • Dimensions: 316 x 342 x 589 mm
  • Weight: 13 kg
  • Operating Voltage: Single-phase 220-240 Vac ~ 50/60 Hz
  • Rated Power: 800 W
  • Overcurrent Protection: Input 2 x 10 A (C/B) / Output 3.15 A (Fuse)
  • Maximum Airflow: 3.9 m³/min
  • Maximum Air Pressure: 24 kPa
  • Motor Type: Brushless

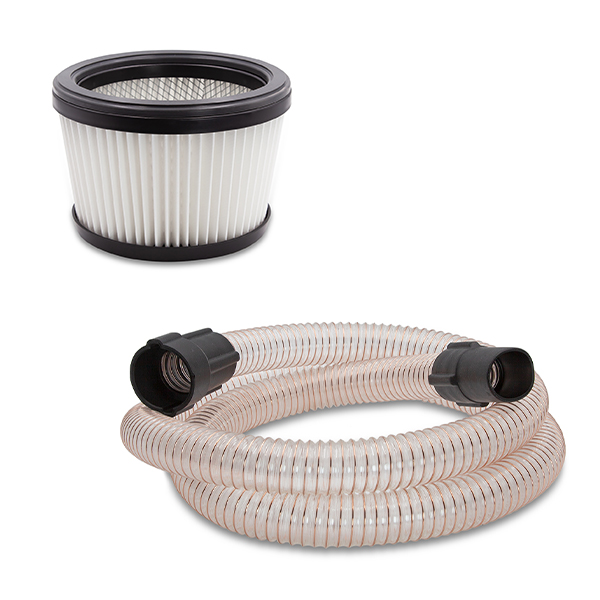

  • Filter: Membrane Filter

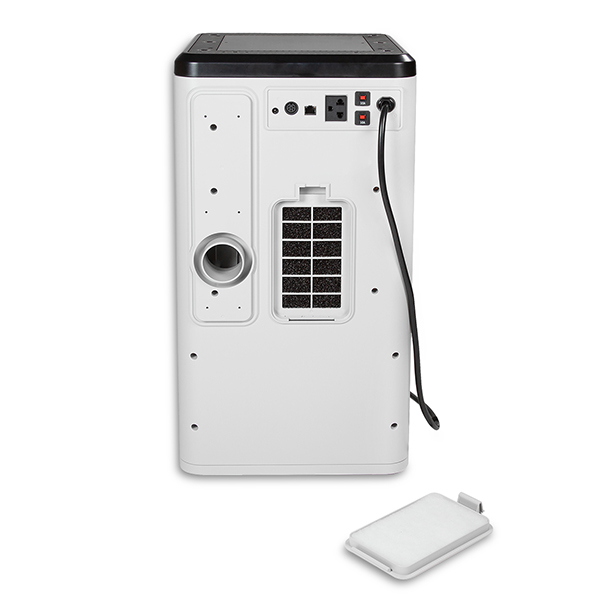

  • Air Inlet Diameter: Ø48 mm
  • Input Signal: Low: 0~2.5 V / High: 4~24 V
  • Output Signal: Maximum Voltage: 24 V, Maximum Current: 5 mA, Internal
  • Series Resistance: 150 Ohm
  • Suction Level: Manual: levels 1~5 / Auto: 2 levels (3rd, 5th)
  • Dust container capacity: 8.71 L
  • Noise level: Max 70 dB (± 5%)
  • CAD/CAM interface: DIN-69 / RJ45 connectors

CAD/CAM connectors

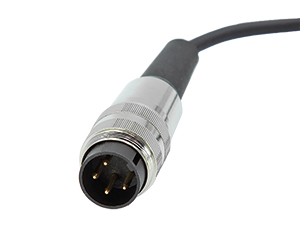

Type A
REF. 080536-17

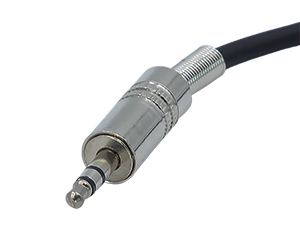

Type B
REF. 080536-19

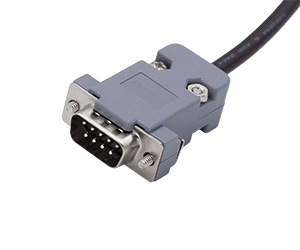

Type D
REF. 080536-18

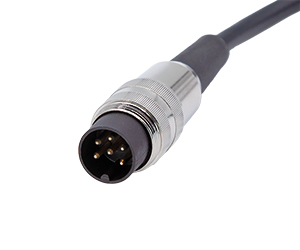

Type G
REF. 080536-20

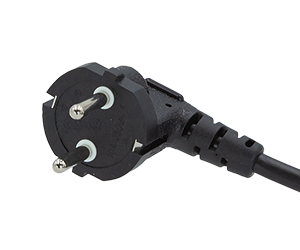

Type H
REF. 080536-33

Leaflet

080536 – ES
080536 – EN
080536 – FR
